How to attach a rear paddock stand to a Supersport?

Would somebody be so kind as to help me to understand how a rear paddock stand works with a Supersport. I can understand that it somehow has to attached to the bike before being levered upwards to lift the wheel off the ground. But how is it attached to the bike? The rear axle has a 43 mm diameter hole right through the middle so does the stand have matching pegs of that diameter? Or should the stand be somehow bolted to some other part of the bike?
Sorry to ask a naive question, but any advice would be much appreciated.
PhilBT is offline
post #2 of 9 (permalink) Old 10-09-2019, 12:56 PM
Chicken Strips

Join Date: Feb 2019
Location: Lower Alabama (LA) USA
Posts: 447
Likes Received: 321
Garage
My Bulldog stand fits inside rear axle (I have 2 pins as they are different sizes, left and right). Works very well and secure.

Mike

1976 BMW R1000 Cafe
2012 Triumph Thruxton Custom
2018 Ducati SSS (red!)
Paddlefoot64 is online now
post #3 of 9 (permalink) Old 10-09-2019, 12:58 PM
Elbow Dragger

DucColin's Avatar

Join Date: Jun 2017
Location: Surrey, England
Posts: 1,387
Likes Received: 1157
Garage
DucColin is online now
Sponsored Links
Advertisement

post #4 of 9 (permalink) Old 10-09-2019, 02:16 PM
Knee Dragger

1uglybastard's Avatar

Join Date: May 2017
Location: NOLA
Posts: 854
Likes Received: 674
Most single sided swingarm stands have replaceable pins that match the different diameter holes. So, I have a pin for the left side and a different one for the right side. Install the correct size pin on the stand, slide it in the corresponding hole, then lift the bike like any other stand.
Paddlefoot64 likes this.
1uglybastard is online now
post #5 of 9 (permalink) Old 10-09-2019, 04:08 PM
SuperSport Master

amoslws's Avatar

Join Date: Apr 2017
Location: Somewhere South
Posts: 4,046
Likes Received: 3153
I use a double sided paddock stand and place a solid bar through the hub hole. Works fine for lubing the chain.
gnelson likes this.
amoslws is online now
post #6 of 9 (permalink) Old 10-09-2019, 05:22 PM
Training Wheels

Join Date: Sep 2017
Posts: 262
Likes Received: 245
@amoslws I used the solid bar for my Scrambler and it worked well with a cheap aluminum stand. My cheap aluminum stand didn't provide enough elevation for the SS. I bought a ConStand for my SS and like being able to maneuver the SS around my garage on the casters on my stand.

gnelson is offline
post #7 of 9 (permalink) Old 10-10-2019, 04:22 AM
Training Wheels

Grossi.BP's Avatar

Join Date: Apr 2019
Location: Polish living in Czech Republic
Posts: 53
Likes Received: 52

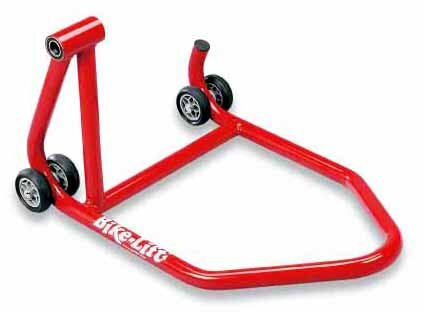

I have this one. You have to put pin inside the center of the wheel (ofc not visible here). However mine stood one year not used becuase I didn't have enough power to use it hehe...
Grossi.BP is online now
post #8 of 9 (permalink) Old 10-10-2019, 11:45 AM
Chicken Strips

hypermattard's Avatar

Join Date: Jul 2017
Location: Oregon Coast
Posts: 303
Likes Received: 229
Garage
Quote:
Originally Posted by 1uglybastard View Post
Most single sided swingarm stands have replaceable pins that match the different diameter holes. So, I have a pin for the left side and a different one for the right side. Install the correct size pin on the stand, slide it in the corresponding hole, then lift the bike like any other stand.



I have, like five pins for my pitbull. two for the supersport, two for the motard, and one for a speed triple that i used to have.

Just because it doesn't make sense, doesn't mean somebody didn't decide to do it that way.
hypermattard is online now
post #9 of 9 (permalink) Old 10-10-2019, 12:36 PM
Elbow Dragger

Join Date: Feb 2019
Location: Edmond OK
Posts: 1,075
Likes Received: 568
I picked up a Moto D stand new much less than the Pit Bull. Works great. I've changed my rear tire and dressed the chain, no problem.

John L
LowRyter is online now
