Brake & Clutch levers

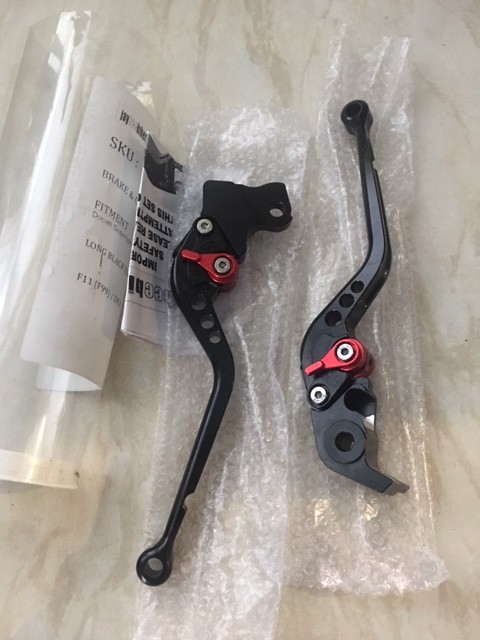

Aftermarket brake & clutch levers for the Supersport (not the Supersport S - does not work with the quickshifter).

£30 posted to the UK

Please note that these are not designed to work with a quickshifter fitted. These were bought for me but unfortunately, were not designed for the S, so they have never been used.


Ducati Supersport S
KTM 1290 SuperDuke R-SE
owl is offline
post #2 of 15 (permalink) Old 03-14-2019, 05:38 PM
Knee Dragger

theresanothersteve's Avatar

Join Date: Dec 2017
Location: Adelaide Hills
Posts: 714
Likes Received: 895
Garage
Why won't they work with the quickshifter?

I have the shortened CNC racing clutch (and brake) levers and they work fine and have not impacted on the DQS. Is there something I'm missing?

She's not an Italian supermodel; they're high maintenance.
She's the cute Italian girl from school you wish you kept in contact with...
theresanothersteve is offline
post #3 of 15 (permalink) Old 03-14-2019, 06:49 PM
Training Wheels

Join Date: Dec 2018
Posts: 82
Likes Received: 75
How is it possible that levers could have anything to do with a quick shifter?
Piston is offline
Sponsored Links
Advertisement

post #4 of 15 (permalink) Old 03-14-2019, 08:41 PM
Knee Dragger

Miweber929's Avatar

Join Date: Aug 2018
Location: Woodbury, Minnesota
Posts: 641
Likes Received: 504
If they fail to push in the pin switch on the clutch lever, the bike would always think the clutch is pulled in is my guess.
Ed K likes this.

Mike

- 2017 Ducati Supersport S
- 2011 Triumph Sprint GT
- 2010 Yamaha WR250R
Miweber929 is offline
post #5 of 15 (permalink) Old 03-14-2019, 09:14 PM
Super Moderator

Ed K's Avatar

Join Date: Feb 2017
Location: America
Posts: 4,539
Likes Received: 2231
Quote:
Originally Posted by Miweber929 View Post
If they fail to push in the pin switch on the clutch lever, the bike would always think the clutch is pulled in is my guess.
Yes, there are some compatibility issues with some levers...that generally have been overcome with careful assembly. But it can affect the QS if not installed correctly.
Miweber929 likes this.

2017 Ducati SuperSport S
2015 Ducati Scrambler
Ed K is offline
post #6 of 15 (permalink) Old 03-15-2019, 05:41 AM
Elbow Dragger

Derek's Avatar

Join Date: Jun 2017
Location: Angus, Scotland
Posts: 1,330
Likes Received: 1464
As @Miweber929 says above, it's because they don't operate the clutch microswitch. The microswitch disables the QS when you do a manual gear change but it also enables the bike to be started in gear as long as the clutch lever is pulled in. It's a right scunner having to find neutral to get it started again if you stall the bike
I have a similar pair fitted to my bike and I drilled a hole and fitted a very short piece of M4 threaded rod near to the pivot to operate the microswitch. Here is a picture of the OEM lever on the right and the modified adjustable lever on the left.
Ed K, se7en, djcmx49 and 2 others like this.

2017 Supersport 939
2015 Scrambler Classic
1994 907ie
1982 Pantah 500SL (now sold)
Derek is online now
post #7 of 15 (permalink) Old 05-08-2019, 05:09 PM
Training Wheels

AndyFaeLarky's Avatar

Join Date: Apr 2018
Posts: 29
Likes Received: 23
Garage
I had the same problem, I fixed it wit a couple layers of insulation tape...

AndyFaeLarky
AndyFaeLarky is offline
post #8 of 15 (permalink) Old 05-17-2019, 01:33 PM
Training Wheels

Join Date: Jun 2018
Posts: 125
Likes Received: 95
Quote:
Originally Posted by AndyFaeLarky View Post
I had the same problem, I fixed it wit a couple layers of insulation tape...
sounds interesting, and a lot easier tan drill …

Will have to check your idea... the only question is, how long Will it last??
nosequeponer is offline
post #9 of 15 (permalink) Old 05-20-2019, 01:23 PM
Training Wheels

AndyFaeLarky's Avatar

Join Date: Apr 2018
Posts: 29
Likes Received: 23
Garage
Hi,

Well its lasted 6 months, several washes and several soaked runs in the wet so far.
nosequeponer likes this.

AndyFaeLarky
AndyFaeLarky is offline
post #10 of 15 (permalink) Old 05-21-2019, 01:12 PM
Training Wheels

Join Date: Jun 2018
Posts: 125
Likes Received: 95
Quote:
Originally Posted by AndyFaeLarky View Post
Hi,

Well its lasted 6 months, several washes and several soaked runs in the wet so far.
it seems to work….. the clutch lever installed, and it seems to be able to start the bike with the clutch pulled...
AndyFaeLarky likes this.
